Details

• Brand:





• SKU:

  LV6Z-2C204-A

• Positions: Left Front, Right Front, Front
• Other Names:

  Front Speed Sensor, Sensor Assembly

• Description:

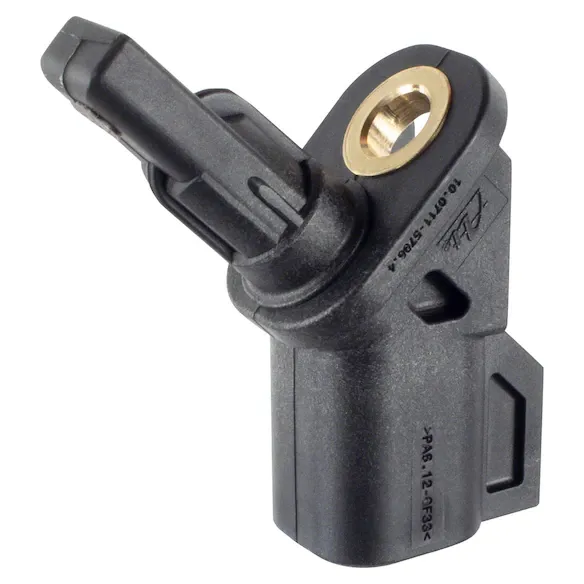

  This is the genuine Ford ABS wheel speed sensor (front, left or right) for 14-23 Ford Transit Connect Van and 14-23 Ford Focus RS 2.3L EcoBoost vehicles. The Ford catalog name is ABS Sensor (Front position). This part number supersedes BV6Z-2C204-A. The sensor mounts at the front wheel hub bearing and reads the speed-toothed reluctor ring on the bearing assembly, providing wheel speed input to the ABS control module for anti-lock braking, traction control, and stability control functions. The front-position sensor differs from the rear-position sensors (LV6Z-2C190 family) by wiring pigtail length, connector orientation, and physical mounting geometry; the front and rear sensors are not interchangeable across positions. Buyers searching for this part are typically responding to an ABS fault code from a front wheel speed sensor circuit, addressing intermittent ABS warning light operation traced to one of the front sensors, or replacing the sensor during a front wheel hub bearing service. The sensor installs at the front hub bearing with a single retaining bolt and a wiring pigtail that connects to the front wheel speed harness routed to the ABS control module. Verify the model and trim before ordering (Transit Connect Van and Focus RS 2.3L specifically; standard Focus uses a different sensor variant).

• Replaces:

  bv6z2c204a
