Details

• Brand:





• SKU:

  JL3Z-1521813-D

• Positions: Left
• Other Names:

  Latch, Lock Actuator, Door Latch Assembly

• Description:

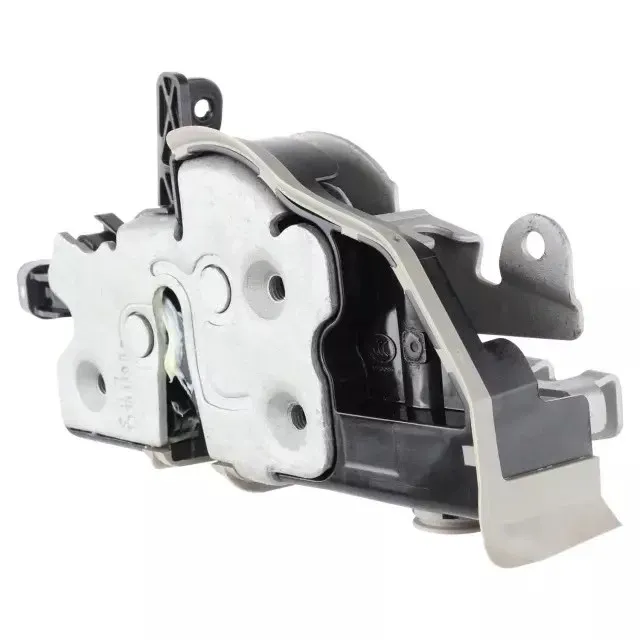

  This is a genuine Ford front driver-side door latch with integrated lock actuator for the 17-20 F-150 and the 17-20 F-250, F-350, F-450, and F-550 Super Duty equipped with power door locks. It is the driver-side counterpart to the passenger-side latch and shares the same general construction, with mirrored linkage geometry and a different connector position to suit the driver door wiring routing. The assembly combines the mechanical latch mechanism with the electric motor that operates the lock and unlock function from the chassis power lock circuit. Failure modes mirror those of the passenger-side unit: actuator motor failure that prevents lock or unlock, mechanical latch failure that affects door operation, connector corrosion that produces intermittent function, and broken internal linkages from age or cold-weather stress. The genuine latch carries the correct mounting bolt pattern, linkage geometry, and connector pinout calibrated to the truck's body control module communication protocol. Replacement requires removal of the door trim panel and weather membrane, careful documentation of linkage routing, removal of the latch retention screws at the door edge, and methodical reconnection of all linkages and the electrical connector. The driver-side latch is the more frequently used of the pair, so it tends to fail earlier in the truck's service life, particularly the actuator motor portion. Apply dielectric grease to the connector before reassembly and verify lock, unlock, key cylinder operation if equipped, and inside release function before completing the repair.

• Notes: Includes Door Lock.
• Replaces:

  CK2Z1521813J, HL3Z1521813D, JL3Z1521813A, JL3Z1521813B, JL3Z1521813C
