Details

• Brand:





• SKU:

  JL3Z-11002-A

• Other Names:

  Starter Motor Assembly, SA1084

• Description:

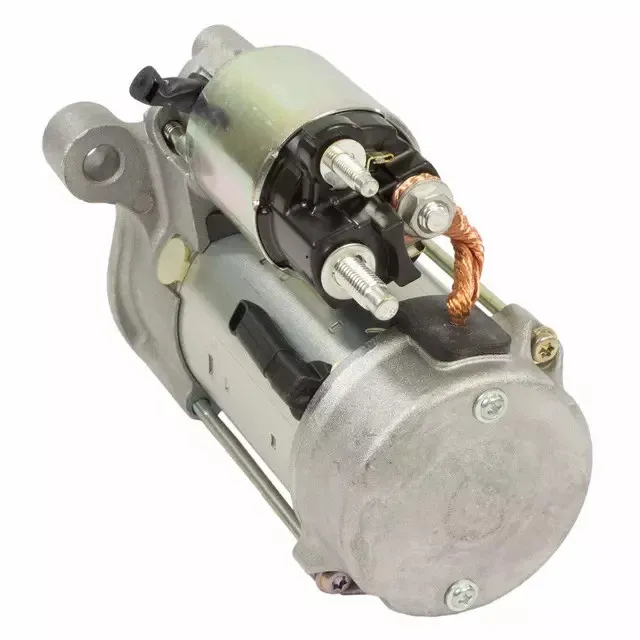

  This is a genuine Ford starter motor for the 18-20 F-150 equipped with the 5.0L V8. The starter is the electric machine that engages the engine flywheel ring gear to crank the engine through compression on a cold start, drawing high current from the battery through dedicated cables and a solenoid that simultaneously closes the high-current circuit and shifts the pinion gear into mesh with the ring gear. A genuine factory starter delivers the cranking torque the engine was calibrated for during cold start enrichment and emissions certification, which matters more than it might appear because slow cranking can extend the time the engine spends in catalyst light-off mode and trigger emissions-related diagnostic codes on otherwise healthy trucks. Symptoms of a failing starter include slow cranking despite a good battery, a single click followed by no engine rotation, intermittent failures to engage on hot restarts, or grinding noises from the bell housing area. Verify the battery state of charge and cable resistance before condemning the starter, since voltage drop across worn cables or corroded terminals can mimic starter failure. Replacement is performed from beneath the truck on this engine, with the starter accessed by removing protective heat shielding and the high-current cable nut. Torque mounting bolts to factory specification and apply dielectric grease to all electrical terminations. The new unit must be the correct part for the 5.0L engine, since V6 variants of the same generation use a different starter with different mounting and pinion specifications.
