Details

• Brand:





• SKU:

  JL3Z-17664-A

• Other Names:

  Windshield Washer Pump, Motor And Pump Assembly, WG335

• Description:

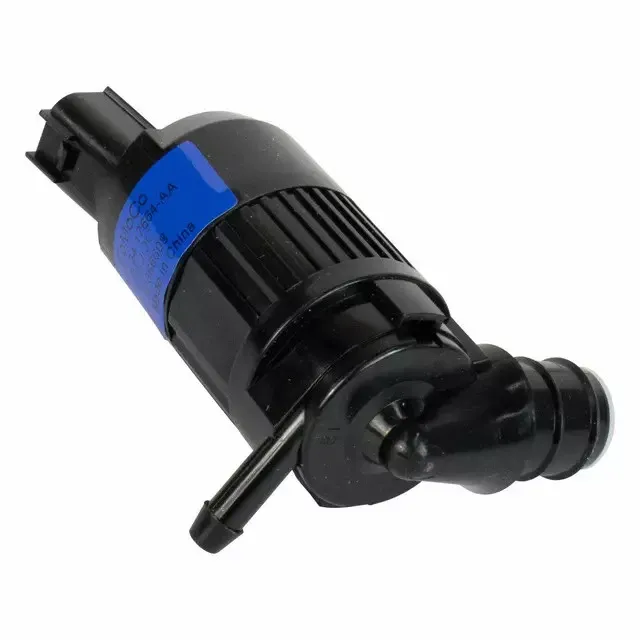

  This is a genuine Ford windshield washer fluid pump for the F-150, covering multiple recent model years on this platform. The pump is a small electrically driven impeller assembly mounted to the side or bottom of the washer fluid reservoir, drawing fluid from the tank through a filter screen and pushing it through the supply line to the windshield washer nozzles. Failure modes include impeller seizure from contamination, motor brush failure from chronic use, internal seal leakage that allows fluid to weep down the side of the reservoir, and electrical connector corrosion that produces intermittent operation. Symptoms include audible pump operation without fluid output, weak fluid stream from the nozzles, no pump operation at all when the washer switch is activated, or visible fluid leakage around the pump grommet. Before condemning the pump, verify supply voltage at the pump connector when the washer switch is activated, since some failures originate in the switch, fuse, or chassis harness rather than the pump itself. The genuine pump carries the correct flow rate, pressure characteristics, and electrical specifications for the F-150 washer system. Substituting a generic pump can produce weak nozzle spray or premature motor failure under the duty cycle the system uses. Replacement requires partial draining of the reservoir, removal of the pump from its grommet on the reservoir, transfer of the supply hose if not included in the listing, and reinstallation with the grommet seated correctly to prevent fluid leakage. Refill the reservoir, test operation, and verify there is no leakage before returning the truck to service.

• Notes: Included with washer reservoir. Included with reservoir assembly.
• Replaces:

  8G1Z17664A, GR2Z17664A
