Details

• Brand:





• SKU:

  JL3Z-18808-PA

• Positions: Front, Front Center
• Other Names:

  Speaker, Speaker Assembly

• Description:

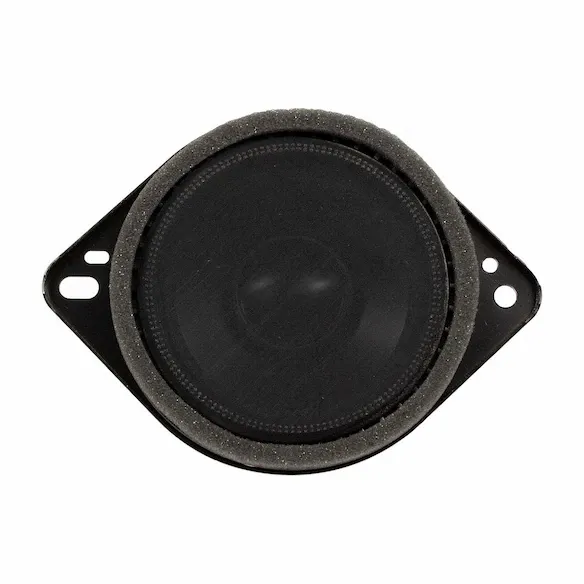

  This is a genuine Ford front instrument panel speaker for the 18-25 F-150, Explorer, Ranger, and Edge. The speaker is the small-diameter driver installed in the instrument panel area, providing the upper frequency reproduction that complements the door-mounted speakers in the truck's audio system. Speaker failure modes include voice coil damage from chronic over-driving or amplifier failure, cone or surround deterioration from age and temperature exposure, broken speaker terminals or magnet structure from impact during installation, and contamination ingress that fouls the voice coil and produces buzz or no output. Symptoms include silent or distorted output from the affected speaker position, intermittent operation that responds to vibration, audible buzz or rattle during certain frequencies, and degraded stereo imaging in the front sound stage. Before condemning a speaker, verify amplifier output at the speaker connector and check the speaker's coil resistance against the original specification. The genuine speaker carries the correct impedance and power handling for the truck's amplifier and audio calibration. Substituting an non-OEM speaker of nominally similar impedance can produce amplifier protection-mode events or audible distortion if the power handling or impedance curve differs from original specification. Replacement requires removal of the instrument panel trim to access the speaker mounting screws, careful disconnection of the harness connector, and methodical reinstallation with attention to the speaker grille and any sealing foam at the mounting flange. Verify audio operation in the affected position before completing the repair.
