Details

• Brand:





• SKU:

  JL3Z-1104-U

• Positions: Front, Left Front, Right Front
• Other Names:

  HUB595

• Description:

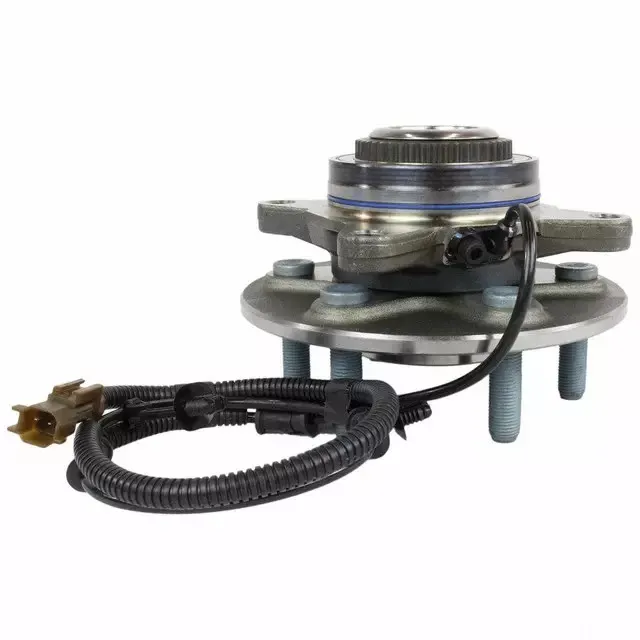

  This is a genuine Ford front wheel hub and bearing assembly for the 19-20 F-150 equipped with four-wheel drive, excluding Raptor, built from a later production date. The assembly integrates the wheel bearing, hub flange, ABS sensor reluctor ring, and mounting hardware into a single sealed unit that replaces the traditional separate-bearing arrangement and simplifies front-end service. The hub-bearing assembly is a wear item that fails through bearing roughness, audible roar that changes with vehicle load or speed, lateral wheel play, or ABS faults caused by a damaged reluctor ring or sensor airgap. Diagnosis should distinguish bearing roar from tire roar, which is sometimes difficult since both change with road surface and speed; swapping tires between corners or measuring wheel runout with a dial indicator can confirm the source. The genuine assembly carries the correct ABS reluctor tooth count and sensor airgap for the truck's wheel speed sensor calibration, which matters for ABS, traction control, stability control, and any towing or trailer assist features that read off wheel speed. Substituting a generic assembly may produce intermittent ABS faults even when the wheel bearing itself functions normally. Replacement requires removing the brake caliper, rotor, and any front axle hardware as applicable, then unbolting the hub assembly from the steering knuckle. Use a torque wrench on all fasteners to factory specification and apply anti-seize to the hub register to prevent corrosion-locking the next time the part comes out.

• Notes: Part has related component that cannot be reused/ reinstalled. mount bolt.
• Applications: 4WD.
• Replaces:

  HUB471, HUB485, JL3Z1104P, JL3Z1104T
