Details

• Brand:





• SKU:

  HX7Z-6K682-E

• Other Names:

  Turbocharger Assembly

• Description:

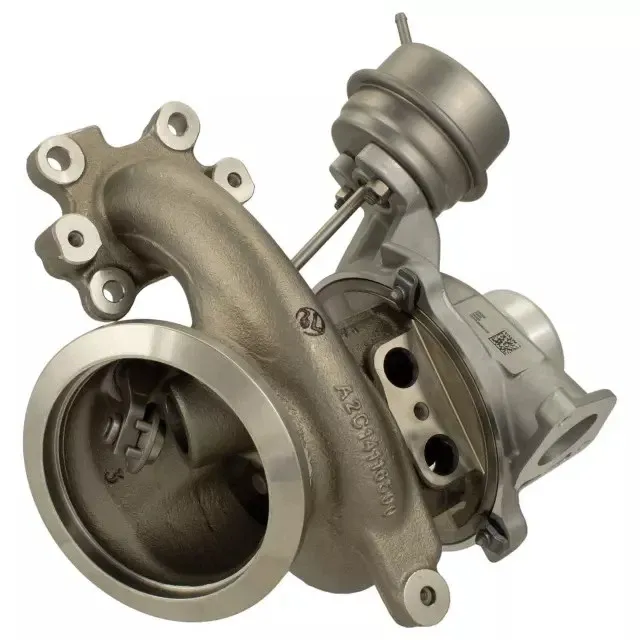

  This is a genuine Ford turbocharger assembly for the 1.5L EcoBoost three-cylinder engine in 20-24 Bronco Sport and Escape vehicles. The unit includes the turbine housing, compressor housing, center cartridge with bearings and shaft, integrated wastegate actuator, and mounting flanges. The turbocharger boosts intake air pressure to the engine to deliver the rated output of approximately 181 horsepower in Escape and 181 horsepower in Bronco Sport applications. Common failure modes include shaft play developing due to bearing wear, oil seal failure causing oil consumption and blue smoke under boost, wastegate actuator sticking which causes underboost or overboost conditions, and turbine wheel damage from foreign object ingestion. Symptoms include loss of boost, whistling or grinding noises, excessive smoke, low power, and check engine codes such as P0299. A core charge applies because the failed unit is returned for rebuild and recycling. Ford service procedures call for changing engine oil and filter at installation and using only specified synthetic oil. Replace all crush gaskets and verify oil supply line cleanliness before installing the new turbocharger.

• Replaces:

  hx7z6k682b, hx7z6k682d
