Details

• Brand:





• SKU:

  LK4Z-19703-E

• Other Names:

  Compressor, Compressor Assembly

• Description:

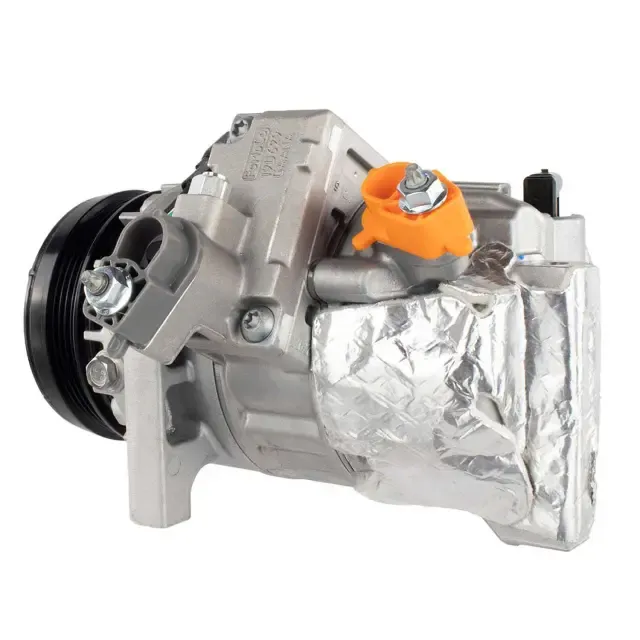

  This is the genuine Ford air-conditioning compressor assembly for 20-25 Ford Transit-150, Transit-250, Transit-350, and Transit-350 HD vans with the 3.5L engine, covering both non-turbo and turbo (EcoBoost) variants and configurations with or without rear climate control. The Ford catalog name is Compressor Assembly, and the compressor is shipped with the magnetic clutch already installed. This part number supersedes the earlier LK4Z-19703-A, B, C, and D and replaces Motorcraft service numbers YCC-575, YCC-604, YCC-622, and YCC-628, consolidating those earlier service variants into a single current-production unit. Buyers searching for this part have usually lost cooling performance, are hearing a noisy compressor bearing, see refrigerant oil weeping from the front seal, or have had a compressor clutch coil burn out. Because the compressor sits at the front of the refrigerant loop, any internal failure that ingests aluminum debris into the system requires flushing the lines, replacing the orifice tube or expansion valve, and replacing the receiver-drier or accumulator at the same time, or the new compressor will fail shortly after install. The system must be evacuated, leak-checked, and recharged to the factory spec for R-1234yf or R-134a as called out on the under-hood label.

• Notes: Includes Clutch.
• Replaces:

  lk4z19703a, lk4z19703b, lk4z19703c, lk4z19703d, ycc575, ycc604, ycc622, ycc628
