Details

• Brand:





• SKU:

  ML3Z-1104-N

• Positions: Left Front, Right Front, Front
• Other Names:

  Front Hub & Bearing, Hub Assembly Wheel

• Description:

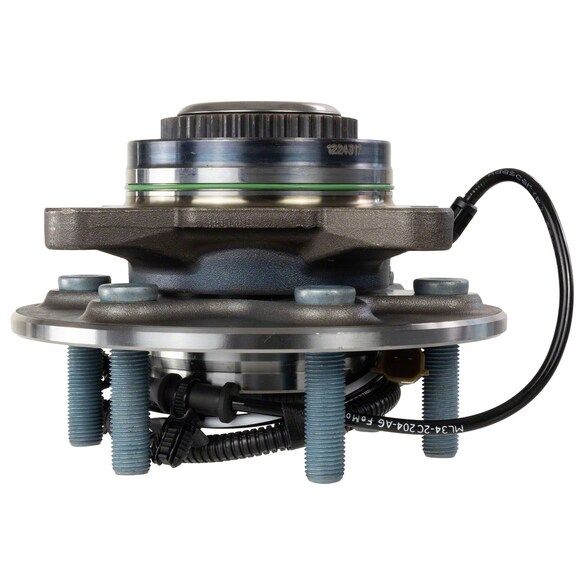

  This is a Genuine Ford OEM front wheel hub and bearing assembly for 21-25 F-150 four-wheel-drive trucks without the police, SSV, or Tremor packages, produced at the Dearborn assembly plant. The unit integrates the wheel bearing, hub flange, ABS wheel speed sensor, and lug studs into a single bolt-on cartridge that mounts to the steering knuckle and accepts the front halfshaft splines through its centre bore. Replaces and supersedes earlier service numbers including ML3Z-1104-A, ML3Z-1104-J, and ML3Z-1104-M. Suitable as a direct replacement when the original bearing produces a wheel speed-dependent hum, ABS sensor fault codes appear, the wheel develops play when grasped at 12 and 6 o'clock, or the truck pulls under braking. Each hub ships individually for one side; replacing in pairs is recommended when both sides have similar mileage. Installation requires removing the brake caliper bracket and rotor, the axle nut, and the four mounting bolts that retain the hub to the knuckle. Torque sequence per factory service procedure with thread locker on the hub bolts.

• Notes: Part hss related component that cannot be reused/reinstalled. mount bolt.
• Applications: 4WD.
• Replaces:

  ML3Z1104A, ML3Z1104J, ML3Z1104M
