Details

• Brand:





• SKU:

  W716992-S439

• Positions: Right Front, Right Outer, Right Front Outer, Right Lower, Left Front, Left Outer, Left Front Outer, Left Lower, Rear Lower Front, Rear Lower Outer, Rear Lower Front Outer, Rear Lower Lower, Front, Front Outer, Front Lower, Lower Front, Lower Outer, Lower Front Outer, Lower, Front Inner Front, Front Inner Outer, Front Inner Front Outer, Front Inner Lower, Front Lower Front, Front Lower Outer, Front Lower Front Outer, Front Lower Lower
• Other Names:

  Lower Control Arm Bolt, Lower Control Arm Front Bolt, Suspension Control Arm Bolt, Bolt

• Description:

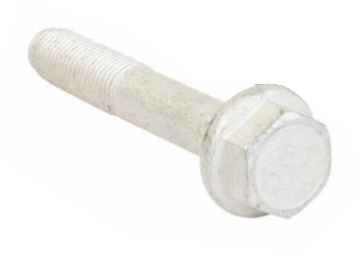

  This is the genuine Ford lower control arm mount bolt, also cataloged as a suspension control arm bolt, an M16 x 97mm hex-head fastener that secures a suspension control arm to the frame, subframe or knuckle. It is a shared service fastener used across many Ford and Lincoln platforms, including Ford Escape, Fusion, Explorer, Mustang and F-350 Super Duty and Lincoln Aviator, Continental and MKX, so it is offered as a multi-vehicle hardware item rather than for a single model year. The bolt carries the full suspension load at the control arm pivot, so correct grade and torque are essential to steering and handling. This is a single-use, torque-to-yield style fastener: it stretches when tightened to its final specification and must not be reused. Always install a new bolt and torque it to the Ford specification for your application whenever the control arm is disturbed; reusing the original can cause loss of clamp load and a loose or noisy suspension joint. Genuine OEM Ford quality.

• Notes: Part cannot be reused/reinstalled.
